Deconvolution
Have you ever wanted to specify the system response function? This software can deconvolute 1Dimension
signal waveform. For a detail example, there is a case that the signal from the function generator will be
drived by the power amplifier. In this case, the power amplifier corresponds to the system.
The blurred signal can be sharpened by Deconvolution. For the signal's degration, blur, please see
"
System's_Half_Width_en.pdf
."
What is Deconvolution?
This software specifies the system response function s from the source signal waveform f and
the observed waveform(convoluted signal waveform)m. By contrast, if f and s were exchanged,
the source signal waveform could be specified by the known system response function, too.
Practical Example
| Source Signal Waveform f |
|
Observed Waveform m |
 |
|
 |
 |

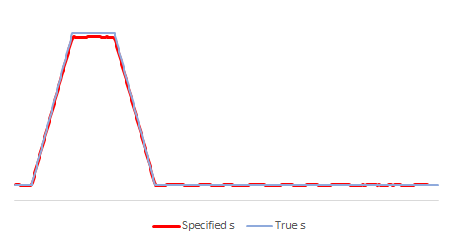

| System Response Function s |
 |
In detail, please see "
Deconvolution_Manual_en.pdf
."
Download Deconvolution Ver.1.0[Win, zip-1.4MB]
